Easy operation and reliable fixation for race starts.

This hole-shot device temporarily compresses the front forks to reduce front-end lift during starts. Developed in response to demands from professional racing, it features a redesigned push button for easier operation and a stronger hold, ideal for metal grates and deep-set positions.

Features:

• Large, easy-to-press push buttons can be operated with the palm, reducing strain on mechanics.
• Supports deep-set positions that were difficult to achieve with previous models.
• Newly designed push rod improves ease of use and securely locks without snagging on the outer tube or device clamp.
• Two high-precision clamp bands available:
  • WP/KAYABA (Clamp diameter: 54 mm)
  • SHOWA (Clamp diameter: 55 mm)
  Provide strong and reliable fixation.
• Hinge-type clamp bands are easy to service and can be removed or installed without removing the front forks.
• Hinge position is optimised to avoid contact with the fork slider, ensuring unrestricted fork movement.
• Includes a positioning sticker to assist with accurate drilling during installation, improving ease and precision.

Specifications:

• Colour: Brown/Black
• Weight: 61 g
• Material: A7000-series aluminium alloy
• Surface Treatment: Hard anodised / Anodised aluminium

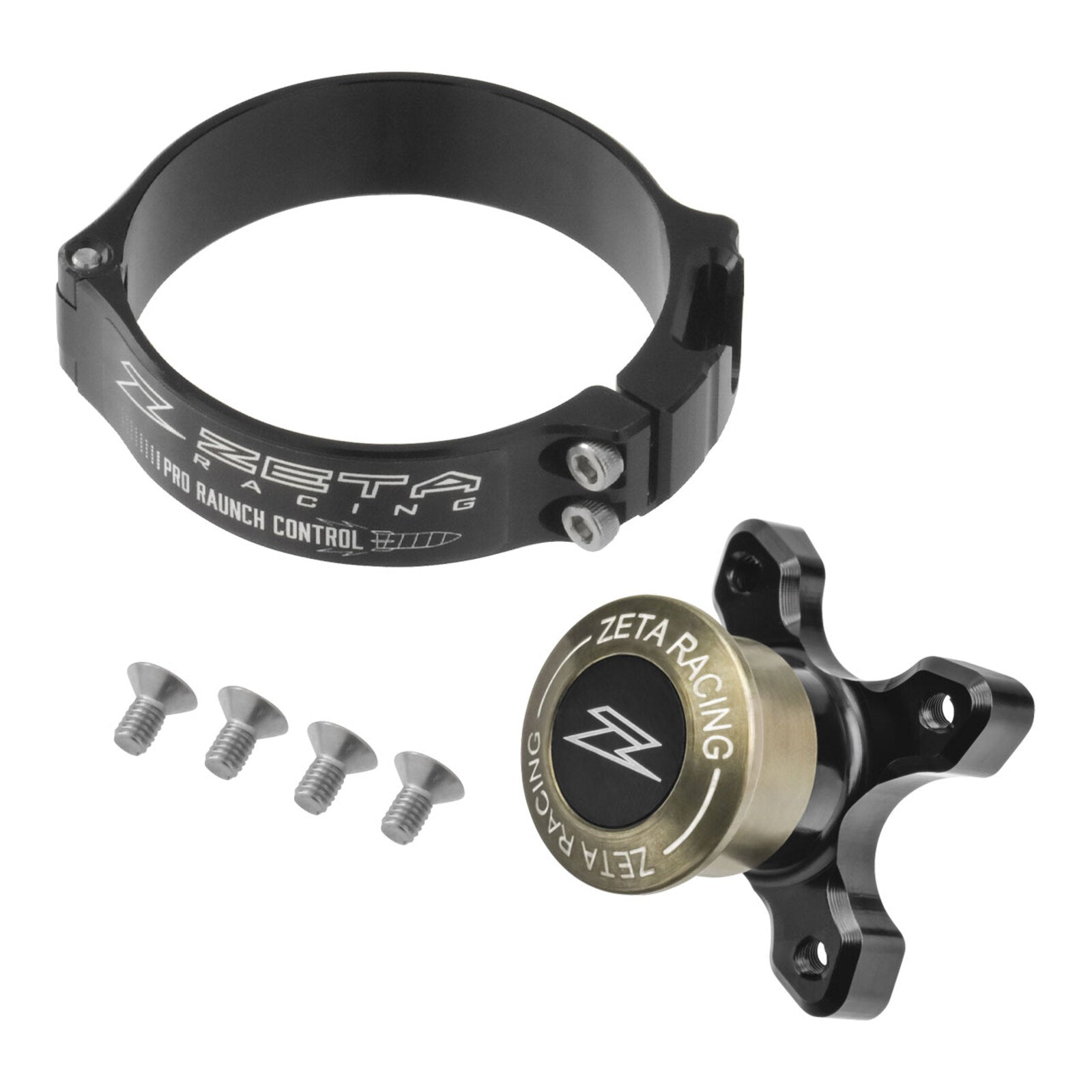

• Set includes:
  • Main unit × 1
  • Clamp band × 1
  • Template sticker × 1
  • Mounting bolts × 1 set (ZE89-7050 includes 2 sets for KAYABA and WP clamps)
