RMSTATOR

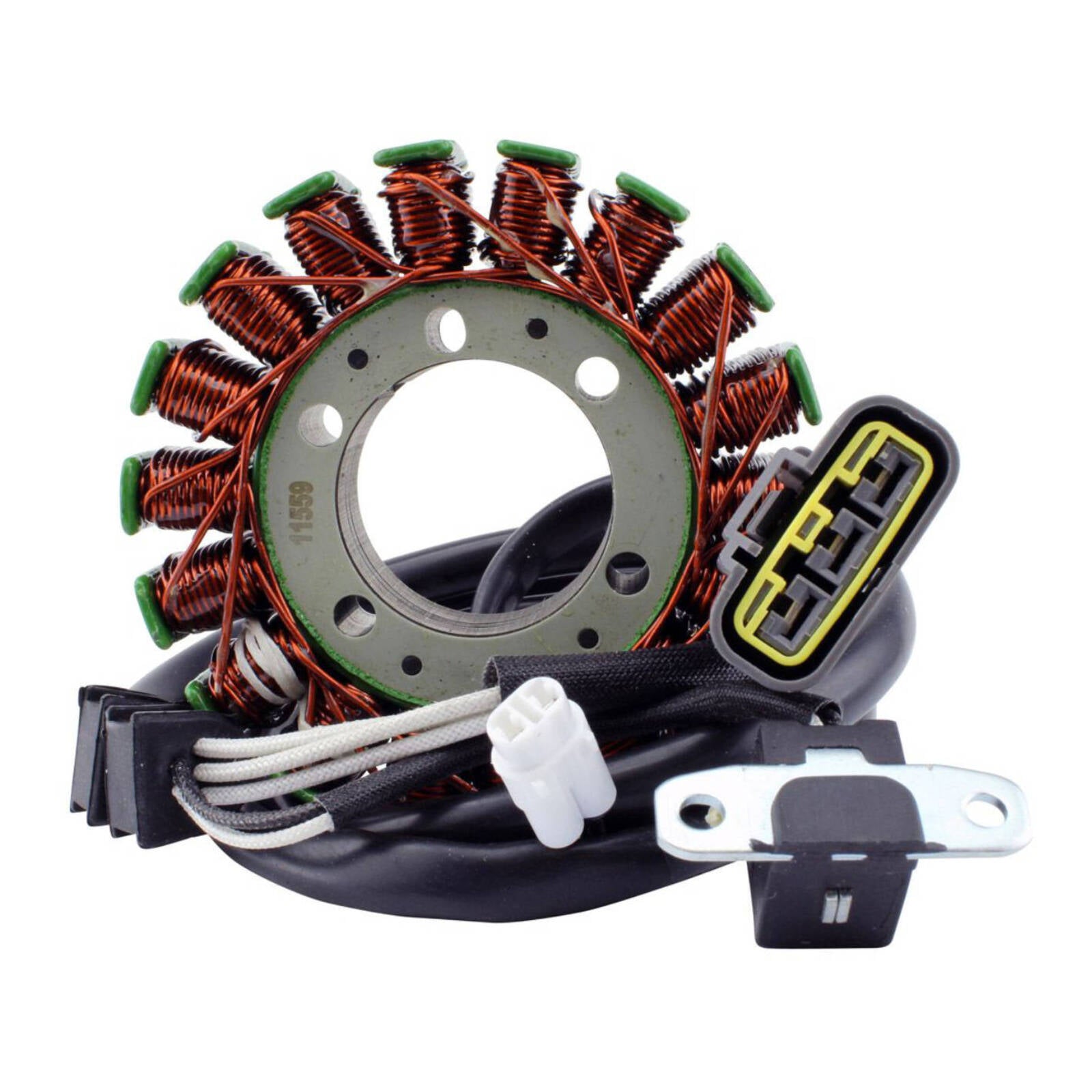

STATOR YAM YFM 700 GRIZZLY YFM 700 KODIAK 4X4 '16-18

STATOR YAM YFM 700 GRIZZLY YFM 700 KODIAK 4X4 '16-18

$449.90 NZD
$449.90 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

Plug-and-play replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 66mm
  • Thickness: 22mm
  • Length of wires stator to grommet: 130mm
  • Length of wires grommet to plug: 1096mm
  • Length of pickup coil's wire to grommet: 115mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each white = 0.4 ohms +-20%
    • Source: Black to White = 200 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 66 mm
  • Thickness: 22 mm
  • Length of wires stator to grommet: 130 mm
  • Length of wires grommet to plug: 1096 mm
  • Length of pickup coil's wire to grommet: 115 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to Wire Resistance:

  • Alternator: Between each white = 0.4 ohms ±20%
  • Source: Black to White = 200 ohms ±20%
