RMSTATOR

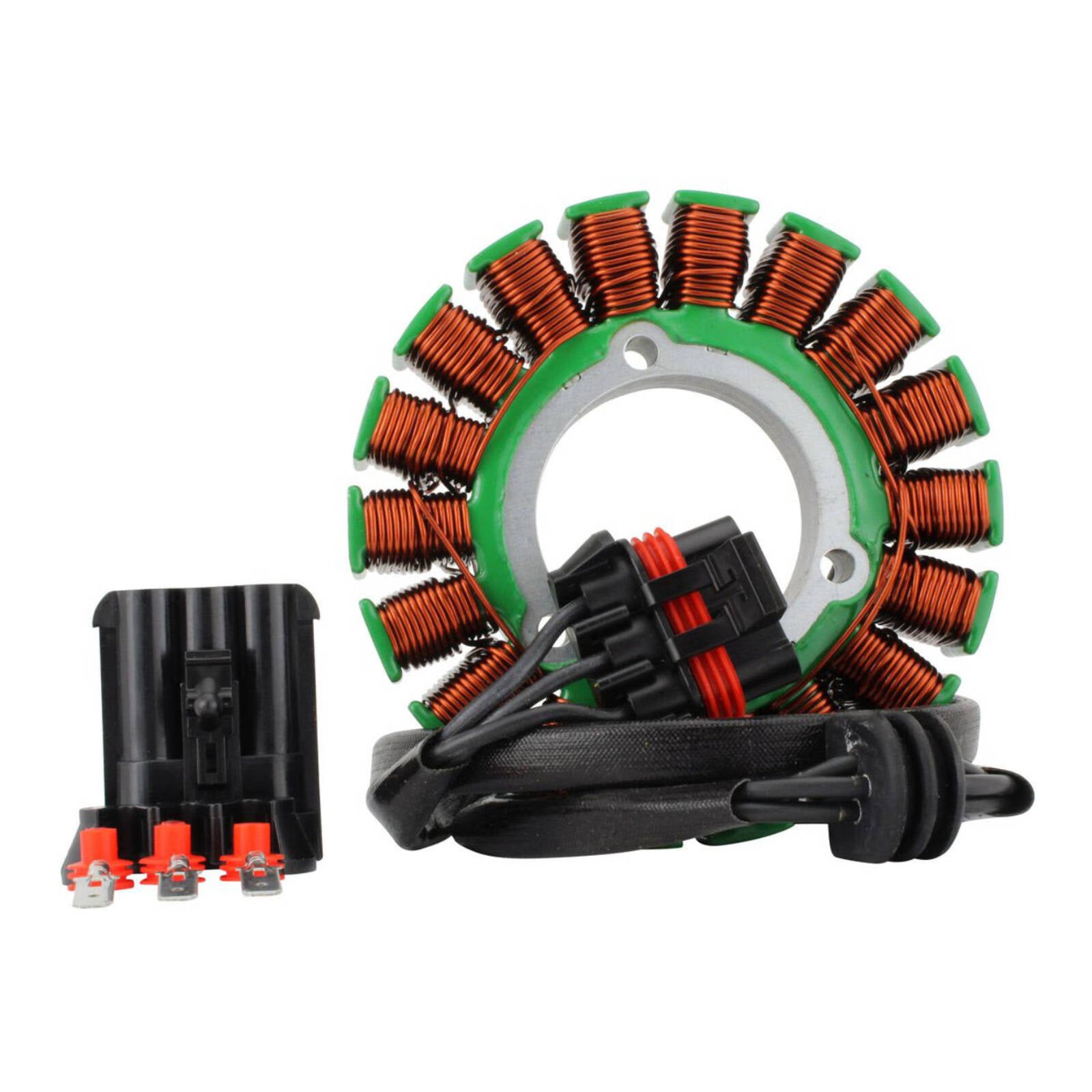

Generator Stator Polaris Ranger 1000 '18-'21 (RMS010-107104)

Generator Stator Polaris Ranger 1000 '18-'21 (RMS010-107104)

$549.99 NZD
$549.99 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

Plug-and-play replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 126 mm
  • Thickness: 21 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 680 mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins:3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.6 ohms +-20%
    • Alternator: to ground = O.L



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested
