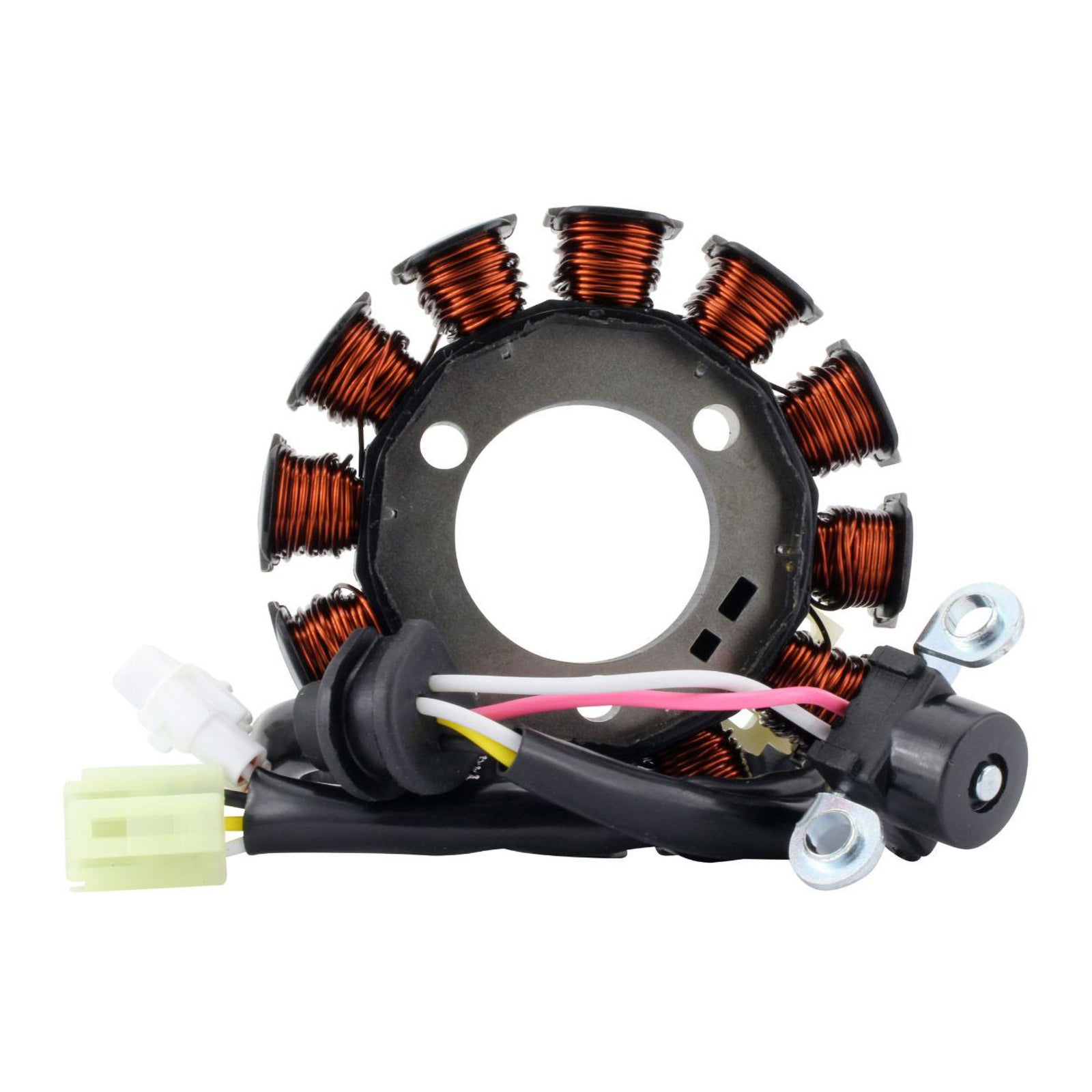

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 37 mm
• Exterior diameter: 92 mm
• Thickness: 12 mm
• Length of wires stator to grommet: 90 mm
• Length of wires grommet to plug: 280 mm
• Length of pickup coil's wire to grommet: 55 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 12

Wire to wire resistance:

• All 1p winding: Black to White = 0.9 ohms +-20%
• Alternator #1: Yellow to Black = 0.6 ohms +-20%
• Alternator #2: Yellow to White = 0.8 ohms +-20%
• Pickup: Pink to White = 280 ohms +-20%
