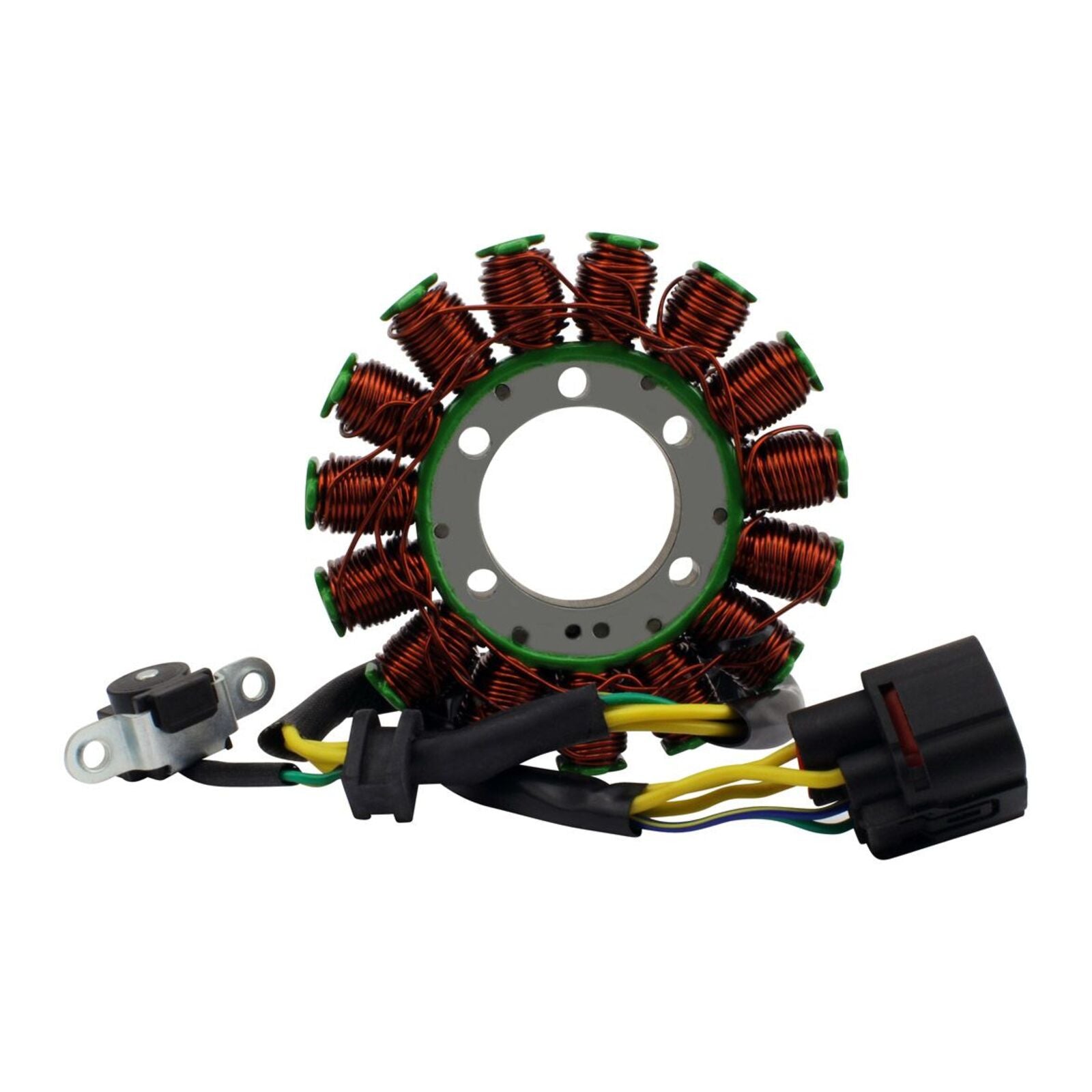

Stator for Honda SXS700 Pioneer '14–'24 – RMS010-108248

Stator for Honda SXS700 Pioneer '14–'24 – RMS010-108248

$469.99 NZD
$469.99 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

Direct replacement to your original unit.

Features:

  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pickup pulsar coil included.
  • Connectors included.
  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r Diameter: 42 mm
  • Exterior Diameter: 115 mm
  • Thickness: 10 mm
  • Length of Wires (Stator to Grommet): 90 mm
  • Length of Wires (Grommet to Plug): 40 mm
  • Length of Pickup Coil's Wire to Grommet: 320 mm

Other Specifications:

  • Number of Wires: 5
  • Number of Plugs: 1
  • Number of Pins: 5
  • Number of Poles: 15
  • Alternator (Yellow to Yellow): 0.4 ohms ± 20%
  • Pickup (Blue/Yellow to Green): 240 ohms ± 20%
