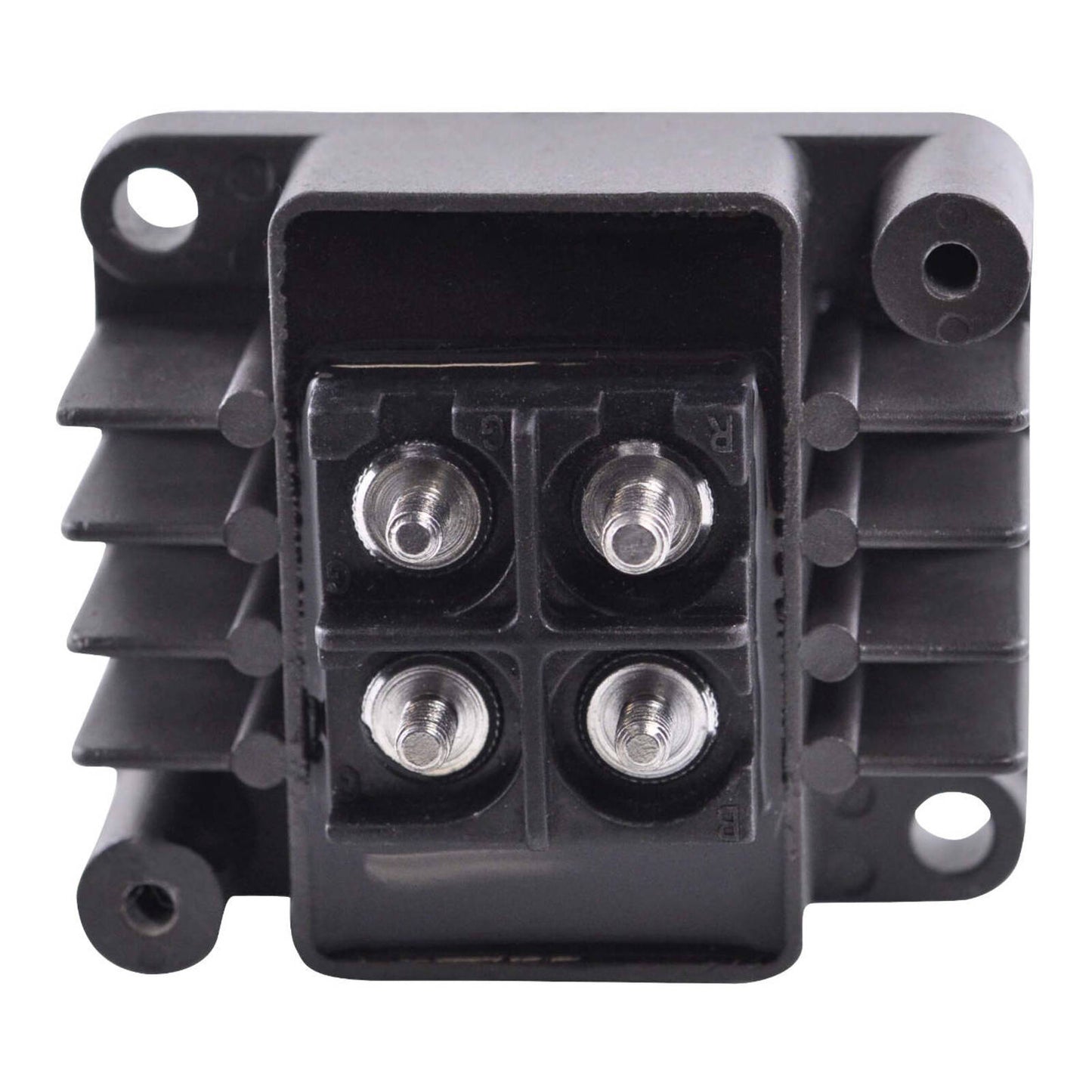

RECTIFIER YAMAHA OUTBOARD RFR FITMENTS (RMS020-101609)

RECTIFIER YAMAHA OUTBOARD RFR FITMENTS (RMS020-101609)

$189.91 NZD
$189.91 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

  • W idth: 70 mm
  • Length: 82 mm
  • Height: 29 mm
  • Fixation holes center to center: 88 mm

Other specifications:

  • Number of pins: 4
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20° to 85°

Note: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
