RMSTATOR

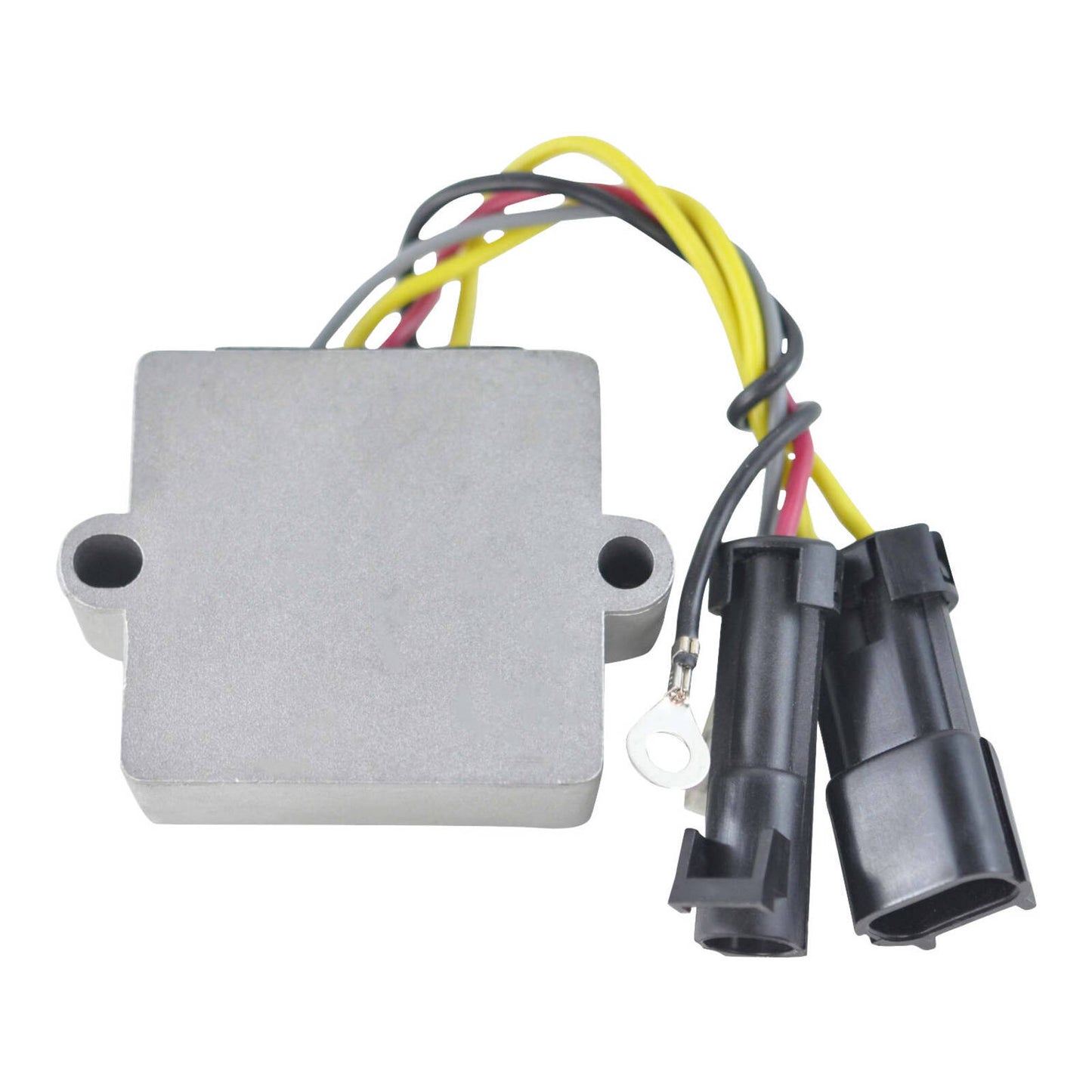

MOSFET Rectifier Mercury Outboard (Refer to Fitments) (RM30431)
MOSFET Rectifier Mercury Outboard (Refer to Fitments) (RM30431)
Regular price
$329.91 NZD
Regular price
Sale price
$329.91 NZD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced MOSFET type.
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
It runs cooler than all OEM diode- style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Higher grade of electric components
- All shipped products are tested
Specifications:
Dimensions:
- Width: 62 mm
- Length: 65 mm
- Height: 25 mm
- Fixation holes centre to centre: 67 mm
- Wires Length: 158 mm and 198 mm
Other specifications:
- Number of plugs: 4
- Number of pins: 5
- Number of wires: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: 15 V
- Operating Temperature: -20° to 85°
